Adjuste Detent Plate

SKU:
$
£ 30.00 GBP

The flexibility of the Adjuste MK2 detent system allows you to use of any lens from a 4.5mm fisheye right up to 105mm on a full-frame sensor for multi-row spherical panoramas and 300mm for single row panoramas.

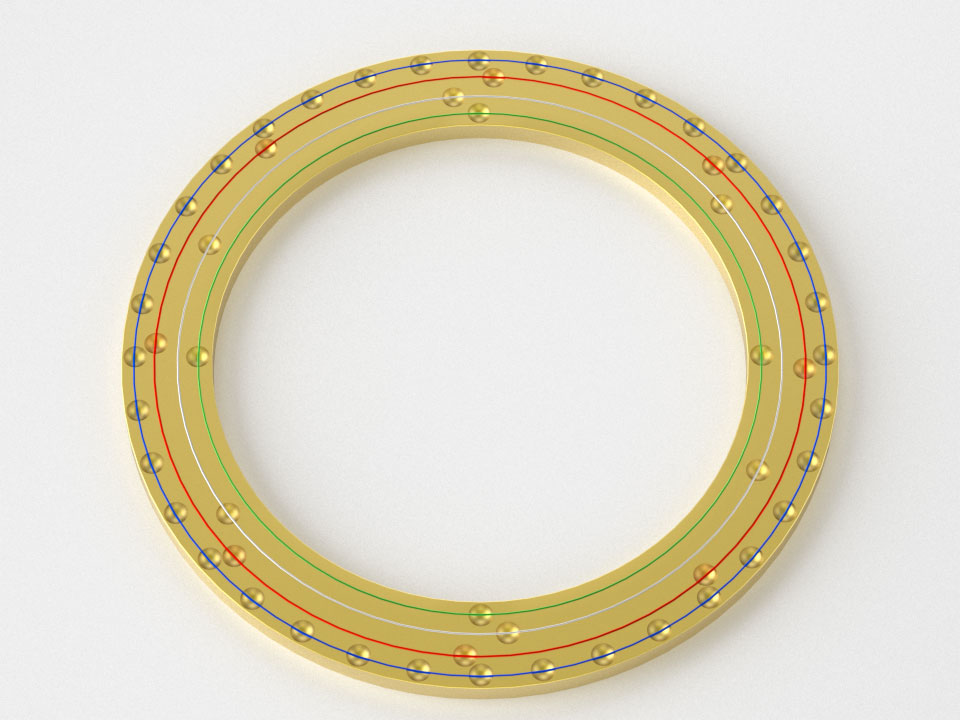

Detent Plate 4-6-8-36

4 stops- Lens Options: 4.5mm - 8mm
Fullframe Options:
Shaved 10.5mm, Tokina 10-17mm

6 stops - Lens Options: 10mm - 12mm fisheye

8 stops - Lens Options: 14mm - 18mm

36 stops - Lens Options: 80mm - 105mm

Detent Plate 6-12-18-32

6 stops - Lens Options: 10mm - 12mm fisheye

12 stops - Lens Options: 16mm - 20mm

18 stops - Lens Options: 24mm - 35mm

32 stops - Lens Options: 50mm - 70mm

Detent Plate 16-24-48-60

16 stops - Lens Options: 28mm - 35mm

24 stops - Lens Options: 60mm - 80mm

48 stops - Lens Options: 135mm - 150mm

60 stops - Lens Options: 150mm - 200mm (minimum overlap)

Detent Plate 36-36-36-36

The four track 36-36-36-36 stop detent is designed to be used with 300-400mm lenses by combining the four tracks to create a 144 stop detent. When using 4 plungers at the same time it is advisable to use the four stainless plungers.

36 stops - Lens Options: 80mm - 105mm

36 stops - Lens Options: 80mm - 105mm

36 stops - Lens Options: 80mm - 105mm

36 stops - Lens Options: 80mm - 105mm

144 stops - Lens Options: 400mm

Detent Plate 54-36-54-60

The four track 54-36-54-60 stop detent is designed to be used with 200-300mm lenses by combining the two tracks to create a 108 stop detent. When using 2 plungers at the same time it is advisable to use the four stainless plungers.

54 stops - Lens Options: 135mm - 150mm

36 stops - Lens Options: 80mm - 105mm

54 stops - Lens Options: 135mm - 150mm

60 stops - Lens Options: 150mm - 200mm (minimum overlap)
